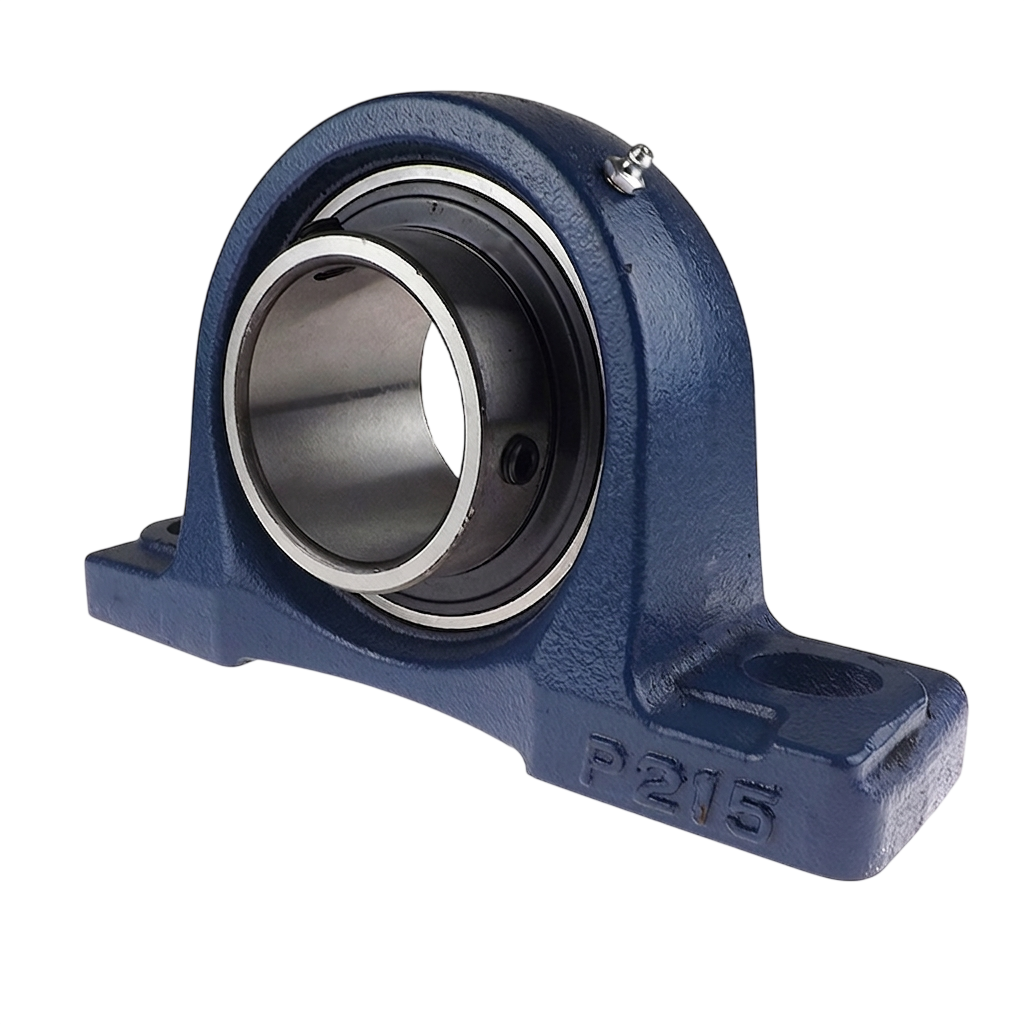

The Bearing UCP 215 is a mounted pillow block ball bearing unit designed for heavy-duty applications, featuring a large bore capacity and robust design, intended for the mounting of a 75mm shaft
Indicative value per piece. Final pricing depends on requirement, quantity, and supply scope.
Indicative value per piece. Final pricing depends on requirement, quantity, and supply scope.
Review the key product details before requesting a quotation or discussing your requirement with our team.
The Bearing UCP 215 is a mounted pillow block ball bearing unit designed for heavy-duty applications, featuring a large bore capacity and robust design, intended for the mounting of a 75mm shaft, which is both rotated and subjected to heavy radial loads. It combines the UC 215 insert ball bearing with the robust P 215 cast iron two-bolt housing in one pre-assembled unit, without the need for any on-site machining, fitting, or pre-assembling.
The unit has a dynamic load rating of 66.3 kN and a static load rating of 49.0 kN, making it one of the units in the range with the highest capacity. It is designed to accommodate loads more than five times heavier than the UCP 204, over 50% heavier than the UCP 211, thus placing it firmly in the large bore, heavy-duty category of the insert ball bearing unit range. At 8.16kg, it is also the heaviest of the standard range of UCP units. It requires careful planning, robust support, and handling during the installation process.
If we consider all the global manufacturers of such products, i.e., NTN, NSK, FYH, Timken, FAG, and many more, we find that when it comes to UCP 215, the top choice for engineers and procurement managers is the SKF product, considering their guaranteed load ratings, top-grade steel specifications, their superior design of a nylon patch set screw locking mechanism, and their extensive published documentation. This product is manufactured according to JIS B 1558 standards and is fully interchangeable with all other top-grade brand products.
The UCP 215 weighs 8.16 kg, so it needs two people to handle it or a machine to lift it when you are installing it. You have to follow these steps carefully because if you make a mistake with something this big, it can be very expensive and even dangerous.
UCP 215 comes pre-greased with SKF LGMT 2-grade lithium-calcium mineral greases. The nipple is in the middle and needs a straight-head grease coupler. Amount of grease to be added: around 18-22 grams per relubrication. Only inject at low pressure — high-pressure injection in this bore size may cause the seals to be damaged.
|
Light Duty (<300 r/min, clean, intermittent) |
Every 1,000–1,500 operating hours |
|
Normal Duty (300–1,500 r/min, standard environment) |
Every 300–600 operating hours |
|
Heavy Duty (high load, vibration, moderate contamination) |
Every 150–300 operating hours |
|
Severe Duty (wet grain, cement, silage, outdoor mining) |
Every 50–100 hours, or weekly |
|
High Temperature (>80°C housing continuous) |
Upgrade to SKF LGHP 2 high-temperature grease; consult SKF |
|
Unit |
Bore |
Dynamic |
Static |
Speed |
Bolt Spacing |
Weight |
|
UCP 204 |
20 mm |
12.7 kN |
6.7 kN |
6,500 r/min |
95 mm |
0.66 kg |
|
UCP 205 |
25 mm |
14.0 kN |
7.8 kN |
5,850 r/min |
100 mm |
0.86 kg |
|
UCP 206 |
30 mm |
19.5 kN |
11.4 kN |
5,000 r/min |
114 mm |
1.34 kg |
|
UCP 207 |
35 mm |
25.5 kN |
15.3 kN |
4,300 r/min |
127 mm |
1.62 kg |
|
UCP 208 |
40 mm |
32.5 kN |
20.0 kN |
3,750 r/min |
140 mm |
2.17 kg |
|
UCP 209 |
45 mm |
32.5 kN |
20.4 kN |
3,400 r/min |
152 mm |
2.60 kg |
|
UCP 210 |
50 mm |
35.1 kN |
23.2 kN |
3,200 r/min |
160 mm |
3.10 kg |
|
UCP 211 |
55 mm |
43.6 kN |
26.0 kN |
3,200 r/min |
171 mm |
3.60 kg |
|
UCP 212 |
60 mm |
52.7 kN |
32.0 kN |
2,800 r/min |
178 mm |
4.35 kg |
|
UCP 213 |
65 mm |
55.9 kN |
34.0 kN |
2,600 r/min |
190 mm |
5.10 kg |
|
UCP 214 |
70 mm |
62.4 kN |
40.0 kN |
2,400 r/min |
203 mm |
6.70 kg |
|
UCP 215 |
75 mm |
66.3 kN |
49.0 kN |
2,100 r/min |
217 mm |
8.16 kg |
|
UCP 216 |
80 mm |
71.5 kN |
54.0 kN |
1,900 r/min |
229 mm |
9.30 kg |
|
UCP 217 |
85 mm |
83.2 kN |
64.0 kN |
1,800 r/min |
241 mm |
12.9 kg |
|
UCP 218 |
90 mm |
95.6 kN |
72.0 kN |
1,600 r/min |
260 mm |
14.5 kg |
Large Industrial Conveyor Systems: the head pulley, tail pulley, and bend pulley shaft support on high-capacity aggregate quarrying, coal mining, port bulk handling, cement plant, and steel mill chain-driven roller conveyor.
Heavy Agricultural Machinery: the main shaft of the combine harvester threshing drum, high-capacity grain auger drives, silage harvester chopper drums, and large irrigation pump shaft pedestals.
Industrial Fan & Blower Assemblies: support of centrifugal, axial fan impeller shafts in ventilation of large industrial, mine ventilation, blast furnace forced-draught fans, and HVAC air handling units.
Large Pump Installations: shine technology water pump bearing pedestals for municipal water supply, flood control stations, large irrigation lift pumps, and industrial process pumps.
Mining & Quarrying Equipment: supporting eccentric shaft of jaw crusher, shaft bearings of vibrating screen, conveyor drives underground, and ore transfer shaft pedestals.
Steel & Metals Industry: support of roller table shaft, coiler and decoiler shaft bearings, strip processing line tension roll shafts, plate cleaning shot blasting machine.
Port & Bulk Material Handling: ship loader and unloader boom conveyor shaft bearings, bucket wheel reclaimer drive shaft support.
Feed Mill & Grain Processing: main pellet press conditioning shafts, hammer mill rotor shaft pedestals, and elevator head shaft support.
Forestry & Wood Processing: support of the large chipper drum main shaft, debarker ring drive shafts, and veneer lathe spindle pedestals.
Power Generation Auxiliaries: cooling tower fan shaft bearings, boiler feed pump intermediate shaft pedestals, and turbine governor auxiliary drive shafts.
The Bearing UCP 215 is a mounted pillow block ball bearing unit designed for heavy-duty applications, featuring a large bore capacity and robust design, intended for the mounting of a 75mm shaft, which is both rotated and subjecte...
Specifications, category context, and inquiry actions are organized clearly so buyers can review product details with more confidence.
From specification clarification to quantity-based discussions, our team supports more practical and commercially relevant inquiry handling.
We help move the process from product review to quotation, planning, and requirement-based supply coordination with better structure.
Common buyer questions before sending inquiries, requesting bulk pricing, or confirming dispatch timelines.
Adding product grade, quantity, and application helps us recommend the right item faster.
Most inquiries are reviewed quickly, especially when product details and quantity are clearly mentioned.
Delivery timelines can vary based on stock, finishing requirements, and destination city.
The UCP 215 is a large-bore, heavy-duty pillow block (plummer block) ball bearing unit consisting of a UC 215 insert ball bearing inside a P 215 cast iron two-bolt housing. It supports a 75mm rotating shaft with a 66.3 kN dynamic load rating and is used in heavy industrial conveyors, large fan drives, mining equipment, pump installations, and demanding agricultural machinery.
The standard UCP 215 has a metric bore of 75mm. Imperial bore variants using the same P 215 housing include UCP 215-44 (2-3/4 inch / 69.85mm), UCP 215-45 (2-13/16 inch / 71.44mm), UCP 215-46 (2-7/8 inch / 73.03mm), and UCP 215-47 (2-15/16 inch / 74.61mm). All variants share the identical housing footprint, bolt hole pattern, and mounting dimensions.
The SKF UCP 215 has a dynamic load rating (C) of 66.3 kN and a static load rating (C₀) of 49.0 kN. The limiting speed under standard grease lubrication is 2,100 r/min. These are among the highest load ratings in the standard UCP 200-series, making the UCP 215 suitable for large-shaft, heavy-duty industrial shaft support applications.
The UCP 211 has a 55mm bore with a 43.6 kN dynamic load rating and weighs 3.60 kg, with a 171mm bolt hole spacing. The UCP 215 increases to a 75mm bore and a 66.3 kN dynamic load rating — approximately 52% stronger — weighing 8.16 kg with a 217mm bolt spacing. The UCP 215 also has a lower limiting speed (2,100 vs 3,200 r/min), reflecting the larger size. Both use a pressed steel cage in the insert bearing.
The SKF UCP 215 weighs 8.16 kg — the heaviest of the commonly stocked standard UCP 200-series sizes. Shipping weight, including packaging,g is typically 9.5–10.5 kg per unit. Two-person handling or mechanical lifting assistance is strongly recommended during installation due to the combination of weight and the precise positioning required during shaft insertion and set screw tightening.
The recommended set screw tightening torque for the UCP 215 is 45–55 Nm. Tighten both set screws alternately in two stages — first to 50% of the final torque, then both to full torque — using a calibrated torque wrench. After the first 8 hours of operation under load, re-check and re-torque both set screws, as initial bedding of the nylon patch may cause slight relaxation.
